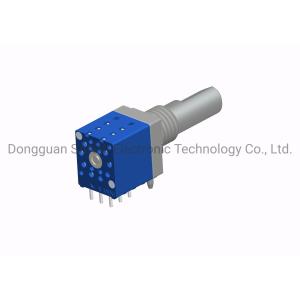

    Re814A0 Three-Unit Shaft Sealed Encoder for Walkie-Talkie, Interphone

    Ask Lasest Price
    Supply Ability : 30000pcs/Month
    Brand Name : SANNI
    Delivery Time : 25 Working days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Re814A0 Three-Unit Shaft Sealed Encoder for Walkie-Talkie, Interphone

    Product Description

    Company Info.

    Basic Info.

    Model NO.
    RE814A0
    Package
    SMD
    Installation Form
    Axle Sleeve Type
    Brand
    Sanni
    Axonia
    Servo Installation Type
    Bit
    16
    Transport Package
    Carton Box
    Specification
    10mm
    Trademark
    SANNI
    Origin
    China
    Production Capacity
    100000PCS Per Year

    Product Description

    • Features
    • RoHS compliant
    • Seal type
    • Small volume
    • Structural diversification
    • High quality
    • Application
    • Indeal for volume control and car amplifier,walkie-talkie.
    • Mechanical characteristics
    • Total rotational angel: Incremental:360° Logic:300°±5º
    • Rotational torque: 150~350gf.cm
    • Rotational stopper strength :3Kgf.min
    • Shaft push-pull strength: 8Kgf.max
    • Shaft wobble: Max:0.6*L/20mm P-P max.
    • Electrical characteristics
    • Ratings power: 0.025W
    • Insulation resistance : 100mΩ min.250V DC
    • Voltage proof: 300V AC for 1 minute
    • Durability
    • Operating life without load: 20,000 cycles 100mΩ max.
    • Environmental performance
    • Cold: -40ºC±2ºC for 96h
    • Dry heat: 85ºC±2ºC for 96h
    • Damp heat: 40±2ºC, 90 to 95%RH for 96H
