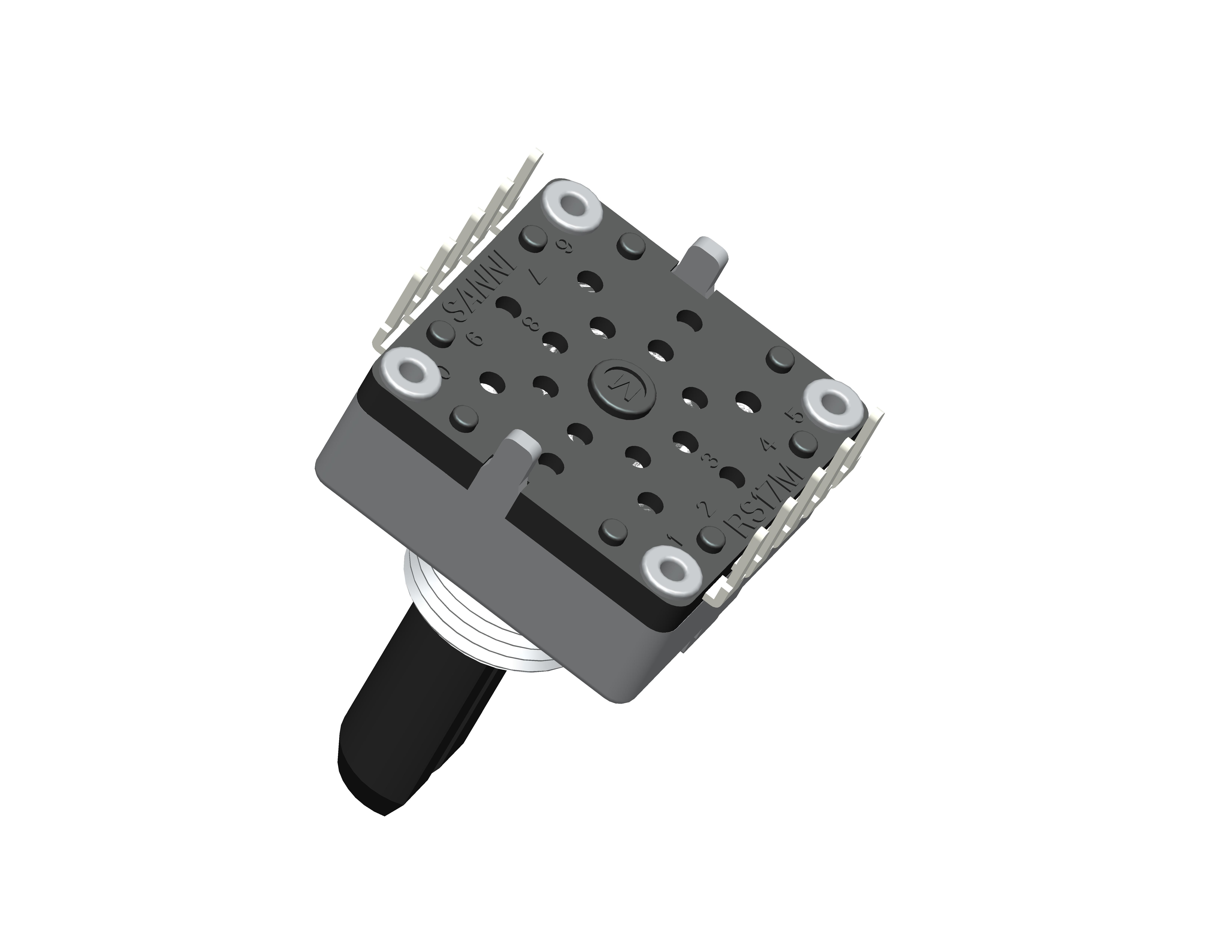

Waterproof Electronic Rotary Switch With Insulating Material RS17M

Ask Lasest Price
Brand Name :	SANNI
Model Number :	RS17M
Price :	USD0.3~0.5 per pc
Payment Terms :	T/T
Supply Ability :	10000pcs per Month
Delivery Time :	25 Working days

Add to Cart

Product Details
Company Profile

Waterproof Electronic Rotary Switch With Insulating Material RS17M

RS17M Rotary Switch Water-Proof Channel Selecting Band Switch

Features of Rotary Switches

Stable performance, good feel, can be coped with waving soldering

Long life and clear click sound

Vertical Type

Insulating Material

RoHS Compliant

Description of Rotary Switch

A rotary switch is a switch operated by rotation. These are often chosen when more than 2 locations are needed, such as a three-speed fan or CB radio with multiple receiving frequencies or "channels". The rotary switch will always have clear click sound when you rotate it to change the band.

Application:

Used as channel selectors on signal receivers, as well as range selectors on electric meter equipment and band selectors on multi-band radios, etc....

Waterproof Electronic Rotary Switch With Insulating Material RS17M

Product Specifications

RS17M
1.Mechanical Characteristics
Total rotation angle	N=30^o N=2/3/4/5/6/7/8 N: Gear
Switching Angle	305^o±2^o
Totational torque	40±15mN.m
Rotation Stopper strengh	Min:5Kgf
Shaft push-pull strength	Min:10Kgf
Terminal Strength	5N for 1 minute
Shaft Wobble	Max: 0.6*L/20mm P-P
2.Electrical Characteristics
Rating(max.)/(min.)(Resistive load)	0.3A 16V DC/50uA 3V DC
Contact Resistance(Initial/After Operating life)	100mΩmax.
Insulation resistance	100MΩ min. 100V DC
Voltage proof	100V AC for 1 minute
Circuit select	2P2T,2P3T,2P4T
3.Durability
Operating life without load	10,000 cycles 100mΩ max
Operating life with load Load:as rating	10,000 cycles 150mΩ max
4.Environmental Performance
Operating temperature range	-10^oC to +85^oC
Storage temperature range	-40^oC to +85^oC
5.Welding heat reference
Manual Soldering	350^oC±10^oC/3+1S
Wave Soldering	260^oC±5^oC/10±1S
Reflow Soldering	See temperature distribution on data sheet

FAQ

Q: Can I get sample from you?

A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

Q: Do you accept customization?

A: Yes, customization is acceptable, please contact our sales staffs for consult.

Q: Can you provide help for technical issues?

A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
