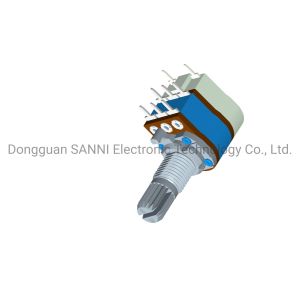

RV12321GSKA Rotary 12mm Potentiometer Dual Unit Shaft Sealed With Switch

RV12321GSKA Rotary Potentiometer 12mm Dual Unit Shaft Sealed Potentiometer with Switch

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.
Good sealing performance
Can be with positioning.
Push-pull switch or rotating switch can be chosen.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.

Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances or medical equipment. It's main functions are: light intensity adjustment,volume adjustment, menu selection, speed adjustment, temperature adjustment, etc.

Specification of Rotary Potentiometer

1.Electrical Characteristics
Total resistance	100Ω-3MΩ
Total resistance tolerance	50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance	R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power	0.05W
Insulation resistance	100MΩ min. 250V DC
Voltage proof	250V AC for 1 minute
Maximum operation voltage	50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:4.0Kgf
Total rotation angle	300o±5o
Totational1	10-150gf.cm
Key push-pull strength	Min:8Kgf
Terminal Strength	5N for 1 minute
3.Switch Characteristics
Switch Type	SPST
Rated Power	1A 16V DC
Switch Torque	500gf.cm Max
Switch Angle	40^o Max
Operating Life without load	15000 cycles 100mΩ Max
Operating life with load:as rating	15000 cycles 200mΩ Max
Initial contact resistance	100mΩ Max
Insulation resistance	100MΩ min. 250V DC
Voltage proof	300V AC for 1 minute
4.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
5.Welding heat reference
Reference for hand soldering	350^oC±10^oC/3+1S
Reference for dip soldering	260^oC±5^oC/10±1S

FAQ

• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.

RV12321GSKA 12mm Shaft Sealed Potentiometer with Switch
