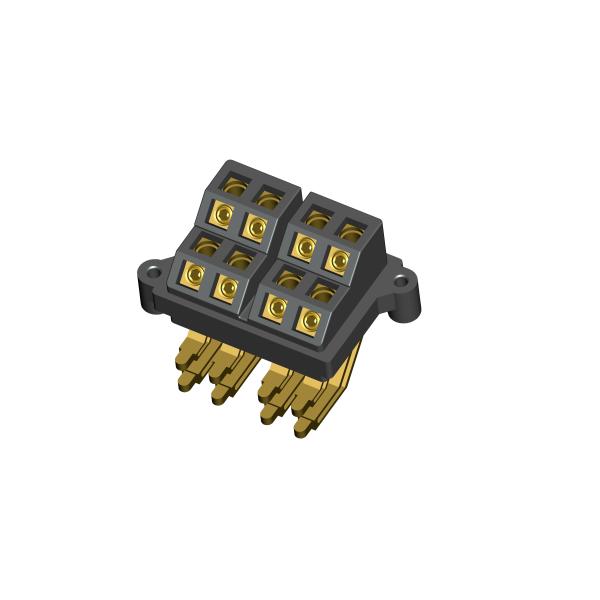

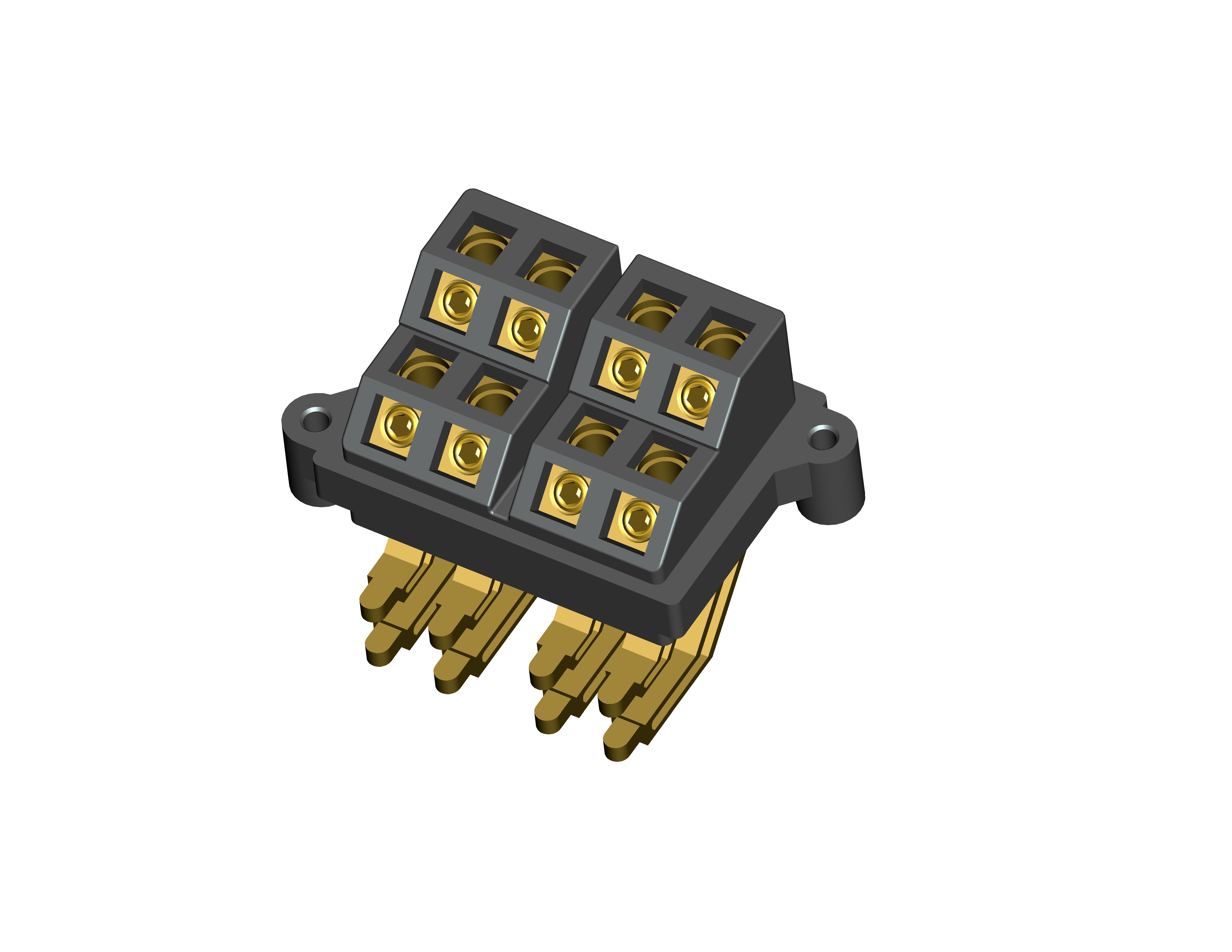

    Car Amplifier Barrier Terminal Block , 8 Position Terminal Strip BT08-001A BT8-93

    Ask Lasest Price
    Brand Name : SANNI
    Model Number : BT8-93
    Price : USD1.2~2.0 per pc
    Payment Terms : T/T
    Supply Ability : 10000pccs per Month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Car Amplifier Barrier Terminal Block , 8 Position Terminal Strip BT08-001A BT8-93

    BT08-001A(BT8-93) 8 Position Panel Barrier Terminal Block For Car Amplifier


    Descriptions


    Using the terminal block is an economical and convenient way to distribute an electrical circuit from a single input source, to several devices in the branch circuit. Thus reducing the total number of wires in your electrical panel and saving your time and money.


    Features of Terminal Block


    Stable performance

    Long life and Good Surface Performance

    RoHS Compliant


    Applications:


    Car amplifier power distribution or audio signal distribution/connection.


    Car Amplifier Barrier Terminal Block , 8 Position Terminal Strip BT08-001A BT8-93


    Product Specifications


    1. Materials & Finish Spec
    Screw:Steel , Finish: Nickel plating with Copper underneath
    Terminal:Zinc Alloy, Finish: Tin/Nickel/with Copper underneath or Gold plating
    Body:PBT or PC UL94-V0
    2. Electrical Characteristics
    Rated current:35A
    Rated voltage:300VDC
    Wire range:12-22AWG with standing
    Insulation resistance:≥1000OHM
    Withstand voltage:1500V AC/minute
    3. Mechanical Specification
    Torque:15.7Lb/in
    Installation:PCB Insertion and Welding
    Operating temperatures:-40°C to 85°C

    Our Services


    1. Offer 1 year warranty

    2. OEM/ODM service to meet all your needs

    3. Within 24 hours to reply your inquiries

    4. Strong R&D team for technical support

    5. Offer free sample for test


    FAQ


    Q: Can I get sample from you?

    A: Yes, we can offer free samples for your testing, please contact us freely and tell us which product you need.

    Q: Do you accept customization?

    A: Yes, customization is acceptable, please contact our sales staffs for details.

    Q: Can you provide help for technical issues?

    A: Yes, we have more than 10 years of R&D in the industry. If you need technical support, please feel free to contact us.
